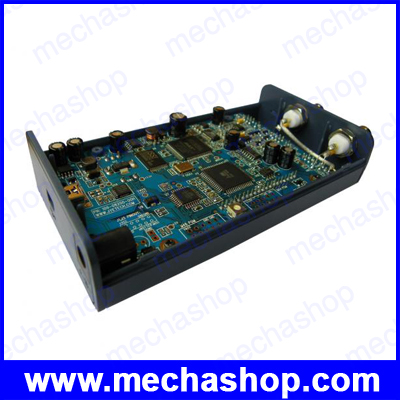

ดิจิตอล ออสซิลโลสโคป 10MHz Pocket/Portable Oscilloscope & Probe 2 CH

ดิจิตอล ออสซิลโลสโคป 10MHz Pocket/Portable Oscilloscope & Probe 2 CH

>> เช็คสต๊อคสินค้า <<

ข้อมูลของสินค้า:

• DSO002 is specified as 10MHz analog bandwidth but its actual -3db bandwidth is closed to 15MHz by real measurement and design.

• Up to 50Msps real-time sampling rate and 10mV/Div sensitivity enable the unit to carry out plenty of daily measurements for a regular electronic engineer or DIYer. Thanks to ample tactile controls and rotary encoder operations of DSO002 are straightforward and easy--there is no annoying menu navigation which is usually found with other portable oscilloscopes.

• Important features include 1024-point FFT, USB connection, capture save/recall, adjustable memory size, and rugged enclosure.
• The firmware is field upgradable through a simple USB connection.

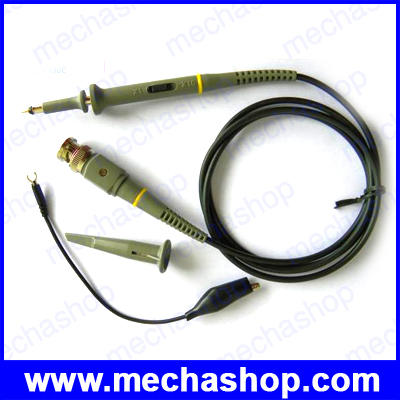

  Not only is this scope the most affordable among oscilloscopes of similar performance but the BNC 10X probe and universal power adapter are also included!

• Item includes 1 Year manufacturer warranty for piece of mind.  As always we are glad to help with any questions whether before or after purchase!


Features:

• Vertical

• Number of Channels: One

• Analog Bandwidth: 0 - 10MHz

• Sensitivity: 10mV/Div -- 5V/Div

• Resolution: 8-bit

• Input Impedance: 1M ohm

• Maximum Input voltage: 50Vpp (for 1X probe)

• Coupling: DC, AC, GND

• Horizontal

• Max Real-time Sampling Rate: 50MSps

• Timebase: 0.2us/Div - 10s/Div

• Record Length: 2000 - 16000 points user selectable

• Zoom-in: Up to 10X in HOLD mode

• Run/Hold Modes: one button switchable


Trigger

• Trigger Modes: Auto, Normal, Single

• Trigger Types: Rising/falling edge

• Trigger Sources: Internal/external

• Trigger Position: Adjustable

• Trig Point Indicator: Yes


Other Features

• Save/Recall up to 4 captures

• Screen image hardcopy

• USB connection for data transfer and firmware upgrade

• FFT with selectable length of 256, 512, or 1024 points and sampling rate from 1KSps to 50MSps

• Rotary encoder for quick parameter setting

• Display

• 2-inch 128 X 64 black-and-white dot-matrix LCD

• Backlight ON/OFF control

• Contrast adjustable

• Power Supply

• 9V AC/DC power adapter

• Supply voltage range: 8 - 12V

• Supply Current: 300mA (LCD backlight ON, typical)

• Reverse polarity and over-voltage protected

• Physical

• Dimension: 140mm X 70mm X 30mm

• Weight: 150 gram (not including probe and power adapter)

รับประกันสินค้า 6 เดือน
