พ็อกเก็ตดิจิตอลออสซิลโลสโคป ดิจตอลสโคป MDSO 20MHz 2 channel usb Virtual oscilloscope 48M

พ็อกเก็ตดิจิตอลออสซิลโลสโคป ดิจตอลสโคป MDSO 20MHz 2 channel usb Virtual oscilloscope 48M

>> เช็คสต๊อคสินค้า <<

Oscilloscope features:

1. the number of channels: 2

2. sample rate: 48MHz

3. the memory depth: 1M

4. the voltage resolution: 1V/256

5. high-speed USB 2.0 data transmission

6. the minimum measuring signal input:-50V (with probe X10)

7. the maximum input of the measuring signal: 50V (with probe X10)
   (Probe X1 stalls, testing peak Peak 10V signaling)

8. the maximum measurement frequency (ideal): sine-15MHz square wave-5MHz
   Measured values (according to the sampling theorem, theory 48MHz, but because of the increased frequency of testing, resulting in fewer sampling points, there will be distortion waveform restore)

9. the software trigger: rising, falling, rising / falling edge, differential, up the difference

Data Logger features:

1. the number of channels: 2

2. the data storage format: OSC files, CSV files (you can use Excel to directly open)

3. the sampling rate range: 0.125MHz-8MHz (specifically the sampling rate is determined by the computer) (Probe X1 stalls, testing peak Peak 10V within the signal to meet the commonly used voltage range)

4. the minimum measuring signal input:-50V (with probe X10)

5. the measured signal input: 50V (with the probe X10)

6. consecutive stored waveform, and to support the global scaling and mobile viewing

7. the support is repeatedly recorded data at the same time to load, easy waveform.

Software features:

1. you can save waveform

2. start, pause functions

3. move the cursor to measure the voltage and time

4. the measured signal frequency, the average peak to peak display

5. the convenience of Windows imitation of the kind of man-machine interface

6. through the software interface to a variety of switching operations; (time scale, voltage scale, closed and open channels, etc.)

7. with the saved waveform zoom in and out of the window to the selected part of the observation function

Support any multi-screen display to facilitate the diverse analysis of the waveform; support the input waveform hardware and software triggers; support the interpolation of the input waveform and equivalent sampling; support of the input waveform "add", "subtraction" and "phase Multiply synthesis; Rectangle, bartlett, triangular, cosine, hanning, bartlett_hanning, hamming, blackman, blackman_Harris, tukey, Nuttall, FlatTop, Bohman, Parzen, Lanczos, kaiser, gauss, dolph_chebyshev 18 kinds window support plus the input waveform; support filtering of the input waveform; support of the input waveform Lissajous Ru graphics "," amplitude-frequency "," frequency "," logarithmic amplitude-frequency power spectrum, the logarithmic power spectrum, self-and cross-correlation analysis; support in logarithmic coordinates, the input waveform amplitude-frequency "," frequency "and" several pieces of frequency, power spectrum, on the number of self- power spectral analysis.

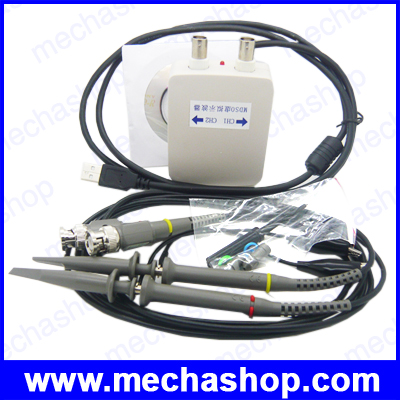

Standard configuration:

• 1 * data acquisition module; (size: 8cm * 6.5cm * 2.5cm)

• 1 * USB 2.0 cable

• 40M standard oscilloscope probe * 2


รับประกันสินค้า 6 เดือน
