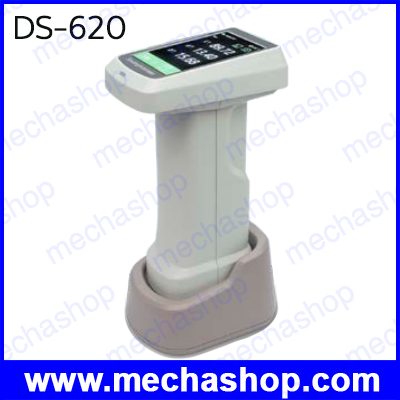

เครื่องวัดเฉดสี เครื่องตรวจวัดสี เครื่องวัดค่าสี Spectrophotometer DS-620 with excellent repeatability accuracy≤0.03 Test Mode SCI+SCE

เครื่องวัดเฉดสี เครื่องตรวจวัดสี เครื่องวัดค่าสี Spectrophotometer DS-620 with excellent repeatability accuracy≤0.03 Test Mode SCI+SCE

>> เช็คสต๊อคสินค้า <<

Product Features

(1) Ultra-high repeatability accuracy:
Repeatability accuracy is an important indicator to describe the accuracy of spectrophotometers. The DS600 series spectrophotometers are evaluated on the basis of a rigorous standard of repeatability, which is unmatched by any other spectrophotometer in its class.

(2) Excellent inter-stage consistency
The superior level of technology and craftsmanship ensures that the DS600 series has excellent inter-instrument agreement. The use of BCRA series standard colour bricks for colour transfer and colour value traceability guarantees an excellent level of inter-stage variation.

(3) Calibration base and zirconium reference with a Mohs hardness of 9 to calibrate the instrument, ensuring long-term stability

(4) The DS600 series supports 3 measuring apertures for selection
To facilitate the measurement of samples of different sizes, the DS600 series spectrophotometer supports three apertures for customer use: Φ8mm/Φ11mm+Φ4mm/Φ6mm+1*3mm, which can be flexibly applied to a variety of different usage and testing conditions

(5) Over 30 measurement parameters and nearly 40 evaluation light sources available
The DS600 series spectrophotometers offer 30+ measurement indicators such as spectral reflectance, CIE-Lab, CIE-LCh, ΔE*ab, opacity, whiteness, yellowness, etc.; and nearly 40 evaluation light sources to choose from such as A, B, C, D50, D55, D65, etc., covering almost all colour measurement indicators and light source types in the industry.

(6) Built-in HD camera for clear observation of the measured area
The DS600 series spectrophotometer can obtain an image of the measured area through the camera when measuring, which can clearly locate the measured area of the sample and avoid inaccurate measurement due to wrong area.

(7) Support WeChat applet, Android, Apple, Hongmeng mobile APP

• The DS600 series spectrophotometers can be connected to a variety of mobile phones via a rich mobile app.
• Users no longer have to pass on the colour values of samples and physical objects, they can easily pass on colour data via WeChat.
• Users can find the most similar colours in multiple sets of colour cards.
• Users can create personal colour databases and enter information on colour cards for printing, paint and textiles. The colour libraries created can be uploaded to the cloud for easy colour processing with data sharing across multiple devices.
• Business users can create and manage their own colour card information library and colour recipes in the cloud, and share the information library and colour recipes to their own users through a unique invitation code

(8) Use the powerful PC-based colour management system ColorExpert*
The DS600 series spectrophotometer is supplied with a Windows colour management system, ColorExpert, which connects to the DS600 series spectrophotometer via Bluetooth or USB cable.
ColorExpert is a full-featured colour management software with four functional modules: My Colours, Colour Check, Colour Matching System and Personal Centre.

In the 'My Colours' function module, users can collect or create their own colour library from hundreds of other users' own shared colour libraries. The PC software and mobile app can share accounts and the colour library data follows the account to synchronise information between PC
and mobile.
In the 'Colour QC' function module, the user can calibrate, measure and set up the spectrophotometer via the PC software. The user can use colours from the cloud database as specimens to measure colour differences, view spectrograms, colour difference graphs, specimen trial data and export the desired data test reports.

The "Colour Matching System" function module provides the user with a more convenient and efficient colour matching process. After the colour of the sample has been measured by the instrument, the system calculates the recipe in the recipe centre and automatically fixes the colour to achieve an accurate match. The system is suitable for computerised automatic colour matching applications in the paint, coating, printing and textile industries.
The 'Personal Centre' function allows users to edit their personal information, search for or delete connected instruments, manage downstream users and manage the colour library shared with downstream users.

รับประกันสินค้า 12 เดือน
