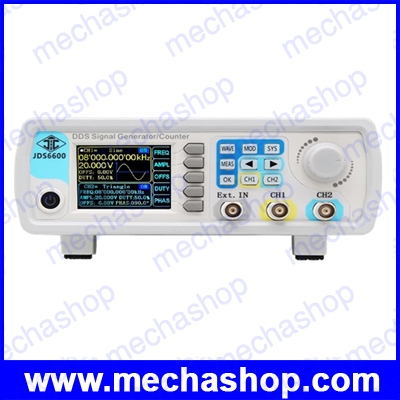

ฟังก์ชั่นเจนเนอร์เรเตอร์ เครื่่องกำเนิดสัญญาณความถี่ Rigol JDS6600 60MHz Digital DDS Dual-Channel Arbitrary Waveform Generator Frequency

>> เช็คสต๊อคสินค้า <<


Features:

1. JDS6600 series Dual-channel Function Signal generator combines multiple functions in one, such as Function Signal Generator, Arbitrary Waveform Generator, Pulse Generator, Sweep, Counter and Frequency Meter, etc.
2. The instrument adopts the Direct Digital Synthesizer(DDS) technology and provides stable, precise, pure and low distortion signals.
3. With output short-circuit protection: all signal output can work 60s under load short-circuit condition.
4. Use soft silicone keys instead of traditional patch keys, high sensitivity and convenient for operation.
5. It's a great testing or measuring instrument for electronics engineers, electronic laboratory, teaching and researching.

Specifications

• Model: JDS6600
• Plug: US/EU/UK/AU(optional)
• Sine frequency range: 0~60MHz
• Square frequency range: 0~25 MHz
• Triangle frequency range: 0~25 MHz
• Pulse frequency range: 0~6 MHz
• TTL digital frequency range: 0~6 MHz
• Arbitrary wave frequency range: 0~6 MHz
• Square rise time: ≤10nS
• Pulse width adjustment range:25nS - 4000S
• Frequency accuracy: ±20 ppm
• Frequency stability: ±1 ppm/3h



Waveform specifications:

• Waveform:  Sine, square, triangle, pulse (duty-cycle correction, pulse width and cycle time adjustable), arbitrary wave, CMOS, DC level, half-wave, full-wave, pos-ladder, neg-Ladder, noise, exponential rise, exponential fall, tone, cink pulse, lorentz pulse, and 60 kinds user-defined waveforms.
• Waveform vertical resolution: 14 bits
• Waveform sampling rate: 266 MSa/s
• Waveform length: 2048 points
• Sine - Harmonic suppression: ≥45dBc(Sine - Total harmonic distortion:   <0.8%(20 Hz~20 kHz,0dBm)
• Square and Pulse - Overshoot (Square): ≤5%
• Square and Pulse - Duty-cycle range(Pulse):   0.1 - 99.9%
• Ramp wave - Linearity: ≥98%(0.01 Hz~10 kHz)

Output specifications:

• Amplitude range:  Frequency<10MHz,0-20VPP; Frequency10 MHz, 0 - 10Vpp.
• Amplitude resolution:   1 mV
• Amplitude stability:   ±0.5%/5 h
• Amplitude flatness:  ±5%(10 MHz)

Waveform specifications:

• Output impedance:   50Ω±10%(typical)
• Protection:   Short circuit 60S will not be damaged
• DC Offset:
• Offset adjusting range: Output Amplitude>2V,-9.99V~9.99V;0.2VOffset resolution:   0.01 V

Phase specifications:

• Phase adjusting range: 0~359.9o
• Phase resolution: 0.1o

TTL/COMS Output:

• Low level:   High level:   1 - 10 V
• Level rise/fall time:   ≤20ns

External measurement functions:

• Frequency meter function - Frequency measurement range:   1 Hz~100 MHz
• Frequency meter function - Measurement accuracy: Gate time continuously adjusted between 0.01S~10s
• Counter function - Counting region: 0-4294967295
• Counter function - Coupled mode: 2 Coupling modes, DC and AC
• Counter function - Counting mode: Manual operation.
• Input signal voltage range: 2 - 20 Vpp
• Pulse width measurement: 0.01us (resolution), 20s (MAX measuring time)
• Period measurement:   0.01us (resolution), 20s (MAX measuring time)

General technical parameters:

• Display type: 2.4 inch TFT color LCD
• Storage and loading - Quantity: 100 groups
• Storage and loading - Location: 00 to 99(extract 00 place data at default boost state)
• Arbitrary wave - quantity: 1 to 60, totally 60 groups (default boost 15 groups)
• Interface mode: USB to serial interface
• Extension interface: There is serial interface of TTL level mode to be convenient for secondary development.
• Communication speed - Adopt standard:   115200 bps
• Communication protocol - Adopt command:   line mode, open protocol
• Power supply: DC 5 V±0.5 V
• Manufacturing process:   Surface-mount technology, large scale integrated circuit, high reliability, long service life
• The user can set ON or OFF by procedure
• Operating characteristics: Full button operation, knob continuous adjustment.

Sweep Functions:

• Sweep channel: CH1 or CH2
• Sweep type: Linear sweep, log sweep
• Sweep time: 0.1s~999.9s
• Setting range: Arbitrarily set between start point and stop points
• Sweep direction: Forward, backward and round trip

Package informations:

• Package Size: 240x210x95mm/9.36x8.19x3.71in
• Package weight: 990g/2.18lb
• General Box Package

Package included:

• 1 x Signal Source Generator
• 1 x CD
• 1 x Power Adapter(In:100~240V~50/60Hz,Out:5.0V-2.0A)
• 1 x USB Data Cable
• 1 x BNC-BNC Cable
• 2 x BNC-Clip Cable
• 1 x Instruction manual

รับประกันสินค้า 1 ปี
