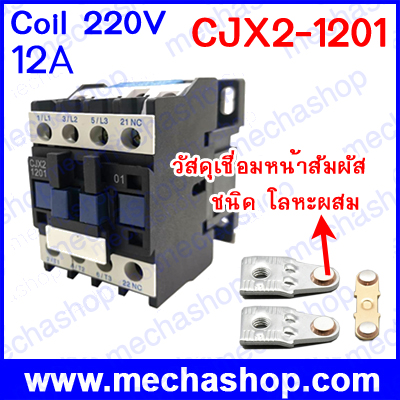

แมกเนติกคอนแทคเตอร์ CJX2-1201 12A 3P+NC Magnetic Ac Electric 3 Pole Contactor For Unit 220V Normally Closed Contactor

>> เช็คสต๊อคสินค้า <<

Features

• 660V AC rated insulation voltage, 3 pole 1NC, 220V AC rated coil voltage, 50/60Hz frequency.
• Widely use for long-distance connecting and breaking circuit , frequent start and control AC electric motors.

Specifications:

• Material: Plastic,Metal

• Model: CJX2-1201

• Main Color: Black

• Product Name: AC Contactor

• Rated Coil Voltage: AC 220V

• Rated working current: 12A
• Frequency: 50/60Hz

• Contact Type: 1NC

• Pole Number: 3 Pole

• Conventional Thermal Current(Ith): 25A

• Rated Insulation Voltage(Ui): AC 660V

• AC-3 Controled Power(Pe): 3/5.5KW

• AC-3 Rated Voltage(Ue): 220/380

• Total Size(Approx): 79 x 46 x 71mm(L*W*H)

• Rail Mounting: 35mm DIN Rail

• Package Content: 1 x AC Contactor

รับประกันสินค้า 1 เดือน
