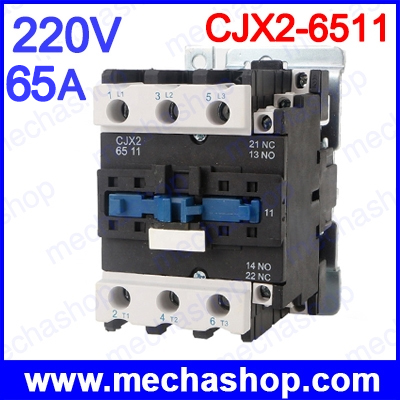

แมกเนติกคอนแทคเตอร์ Motor Control AC Contactor AC-3 37KW 65A 3 Pole 220V Coil CJX2-6511

>> เช็คสต๊อคสินค้า <<

AC Contactor is suitable for long-distance making and breaking circuit, frequently starting and controlling the AC motors.

CJX2-D series AC Contactor is suitable for using in the circuits up to the rated voltage 660VAC 50Hz or 60Hz, rated current up to 620A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The products comply with IEC60947-4.

Specifications:

• Product Name: AC Contactor

• Model Number: CJX2-6511

• Rated Insulation Voltage(Ui): 660V

• Conventional Thermal Current(Ith): 80A

• Rated Coil Voltage: 220V, 50-60Hz

• Rated working current: 65A
• AC-3

  • Ue(V)    220 / 380 / 660

  • Pe(kW) 18.5 /  30 /  37

• Number of Contact: 3P+NO

• Overall Size(Approx.): 129 x 116 x 77mm

• Material: Plastic, Metal, Electrical Parts

• Main Color: Black, White, Blue

• Net Weight: 1200g

• Package Content: 1 x AC Contactor

Note: Coil Rated Voltage is AC 380V, please pay attention to the voltage before odering to make sure the item can works successfully in your area.

รับประกันสินค้า 1 เดือน
