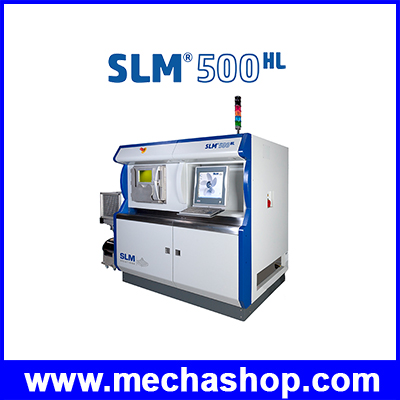

เครื่องพิมพ์3มิติ SLM 500 HL: Achieve faster, cost-efficient builds for larger complex parts
เครื่องพิมพ์3มิติ SLM 500 HL: Achieve faster, cost-efficient builds for larger complex parts
Achieve faster, cost-efficient builds for larger complex parts UNIQUE TWIN or QUAD LASER TECHNOLOGY
- 500 x 280 x 320 mm build envelope
- 2 standard 400W Fiber Lasers
- Option to add 2 additional 400W (total of 4-quad lasers) or,
- Option to add 2, 1000W Fiber Lasers along the 2 standard 400W (total of 4-quad lasers)
- Integrate various types of lasers independently OR in parallel
- LOWER PRODUCTION COST with material saving and efficient closed-loop powder handling
- INCREASE BUILD SPEEDS with patented bi-directional loader
- Adapter for higher platform temperatures
- Open software architecture & system parameters
- Optimized laminated gas flow and recirculation
As the flagship additive manufacturing system for high volume metal part production, the SLM® 500HL is built to optimize your metal part production, ensure operator safety, and lower overall operational costs. Likewise, the newly integrated SLM Build Processor and open software architecture offers the freedom of controlling system parameters to optimize and meet strict production needs. The SLM 500HL patented closed-loop transport of metal powder increases operator safety and eliminates time consuming manual fills and powder handling. To further reduce ancillary times, the automatic powder sieving procedure does not interfere with the parallel-running build process. The finished build cylinder is transported out of the system and the cooling process takes place inside the unpacking unit, so that the next build process can begin immediately. Achieve greater component quality and control your performance of each powder layer with the next generation SLM 500HL. An option to add an Automated Layer Control System is also available to detect and correct powder preparation and execution after each cycle—exercising optimal quality control in your production.
SYSTEM PARAMETERS*
| Build Envelope Volume in mm (x/y/z) |
500 x 280 x 320 |
| Laser Power |
2x 400W; or optional 2x 400W and 2x 1000W; or optional 4x 400W Yb-Fiber-Laser |
| Build Speed |
105 ccm/h |
| Pract. Layer Thickness |
20 – 200 μm |
| Min. Scale Line / Wall Thickness |
160 – 180 μm |
| Operational Beam Focus |
80 – 120 / 700 μm |
| Scan Speed |
10 m/s |
| Inert Gas Consumption in Operation |
Ar/N, 5.0 L/min |
| Inert Gas Consumption Venting |
Ar/N, 2500 L @ 100 L/min |
| Compressed Air Requirement |
ISO 8573-1, 30 L/min @ 1.5 bar |
| Dimensions in mm (B x H x T) |
4000 x 2200 (2500) x 1100 |
| Weight |
approx. 2600 kg |
| E-Connection / Consumption |
400 Volt 3NPE, 64 A, 50/60 Hz, 8 KW/h – 10 KW |
*Subject to technical changes
