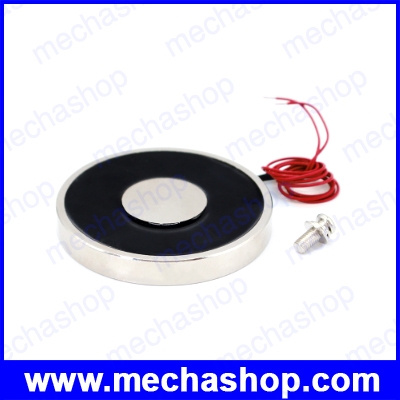

อิเล็กโตแมกเนติก แม่เหล็กไฟฟ้า 70/10 DC 12V Electromagnet cylinder magnets electric magnet suck 20KG 200N 12W

>> เช็คสต๊อคสินค้า <<

Feature

• Electric lifting magnet.

• Powerful and compact.

• Smooth and flat surface.

• Low consumption and reliable.

• Ambient temperature within 130 degrees.

• Widely applied in automations: assembly line, sorting machine, mechanical arm, experimental facility, etc

• suction means more than 5cm in thickness, surface roughness, the surface is greater than the cross-sectional area of the electromagnet and maximum suction completely fit together on an iron-based material.

• Electromagnet in working condition electromagnetic conversion would produce a certain amount of heat, electricity more frequently the higher temperature, which is a normal phenomenon.

Specifications

• Model: BR70/10
• Item:Holding Electric Magnet
• Input Voltage: DC 12V
• Power Consumption: 12W
• Holding Force: 20kg
• Material: Metal
• Color: Silvery and Black
• Diameter (D): 70 mm
• Center Diameter (d): 30 mm
• Height (H): 10 mm
• Lead Length: 200 mm
• Thread Size: M4

Package Included

• 1 x BR70/10 12W Electric Lifting Magnet Holding Electromagnet Lift 30Kg Solenoid

รับประกันสินค้า 1 เดือน
