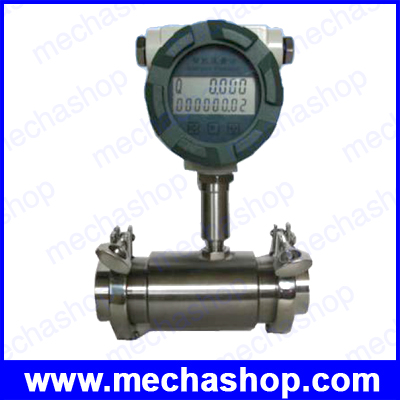

เครื่องวัดอัตราการไหลแบบเทอร์ไบน์ Tri clamp Turbine Flow Meter Water Liquid Flowmeter DN50 4-20mA, 24V (สินค้า Pre-Order)

>> แจ้งความต้องการสินค้า <<

with display DN 100 : 23,500 ,no display : 18900. Turbine sensor

Feature:

• High accuracy, usually reach ±1%R,±5%R, or even reach ±0.2%R for high-precision type
• Good repeatable and repeatability, can reach 0.05%-0.2% in short term, if regular calibration or online calibration can get an extremely high accuracy, so it is preferred in trade
• Pulse signal output, suitable for total flow measurement and computer connection, no zero drift, strong anti-jamming capability
• High frequency signal (3-4kHz), strong signal resolution
• Suitable for high pressure measurement. the interface of the instrument doesn't have to be opened, so it can be made to a high pressure instrument easily
• It can be customer-tailored according to different sensors, for example, low-temperature type, two-way type, underground type, sand special type, etc

Specifications:

• Model: Teren-TFM

• Accuracy: ±1%R±0.5%R

• Diameter(mm): DN4-500mm

• meter material: 304 stainless steel,316Lstainless steel

• Medium temperature: -20oC-110oC

• Ambient condition: temperature10+55,relative humidity590, pressure86106Kpa

• Output signal: 4 ~ 20mADC current signal

• Power supply: +12 VDC, +24 VDC (optional)

• Signal transmission line: 2×0.32 wires

• Transmission distance: ≤1000m

• Transmission line interface: Tri clamp

• Explosion-proof class: ExdIIBT6

• Protection class: IP65,IP67,IP68 (optional)

รับประกันสินค้า 6 เดือน
