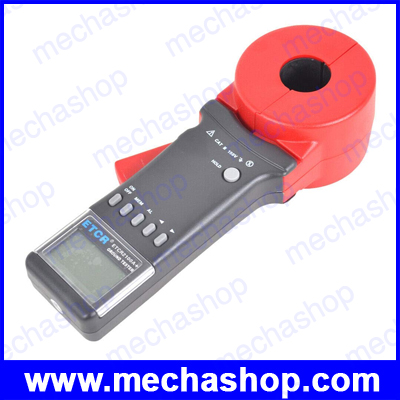

เครื่องวัดกราวด์ดิน ETCR2100A+ Digital Clamp On Ground Earth Resistance Tester Meter / Clamp Earth Resistance Tester (สินค้า Pre-Order)

>> แจ้งความต้องการสินค้า <<

ETCR clamp ground resistance tester is widely used in grounding resistance measurement and loop resistance measurement in power, telecommunication, meteorology, oilfield, construction and industrial electrical equipment. When measuring a grounded system with a loop, it is not necessary to disconnect the ground deflector, and no auxiliary electrode is required. It is safe and fast. The ETCR Clamp Ground Resistance Meter measures ground faults that cannot be measured with conventional methods and can be used in applications where traditional methods cannot be used. The Clamp Ground Resistance Tester measures the combined value of the ground resistance and the ground lead resistance.

1. Ground resistance measurement, loop resistance measurement.
2. The major breakthroughs in ground resistance testing technology and non-contact measurement are fast and safe.
3. When measuring a grounded system with loop, it is not necessary to disconnect the ground deflector and no auxiliary electrode is needed, saving time and effort.
4. Clamp-type grounding resistance meters can measure ground faults that cannot be measured with traditional methods and can be used in applications where traditional methods cannot be measured.
5. Sound and light alarm function.

Product Main Function

1. Measurement of earth resistance,loop resistance
2. Measure Range: 0.010Ω~200Ω
3. Data Storage: 99 sets
4. Alarm Threshold Setting1-199Ω
5. Alarm Function: audible and visible alarm
6. CT Size: 65mmX32mm

Technical Specifications:

• Power Supply: 4 PCS of LR6 lkaline batteries (ไม่มีแถม)

• Clamp Size: 65mm×32mm

• LCD Size: 4 Digits LCD display, Screen : 47mm×28.5mm

• Range: 0.010Ω~200Ω

• Resolution: 0.001Ω

• Accuracy: ±1%±0.01Ω

• Data Storage: 99 sets

• Data Upload Function: RS232 Interface (Optional)

• Auto Power-off: Automatically power off after 5 minutes without any operate

• Power Consumption: ≤50mA continuously working for 30 hours

• Working Environment: -20~5520%rh~80%rh

• Store Environment: -20~60below 90%rh

• Alarm threshold setting range Resistance1~199Ω

• Audible and VisibleAlarm: “Beep-beep-beep” alarm sound, alarm symbol flashing, pressALkey to turn on/off and setting

• Interference Signal Recognition: “Beep-beep-beep” indicator,NOISEsymbol blinking

• Protection Level: Double insulation

• Structural Feature: Clamp CT

• Shift: Automatic shift

• External Magnetic Field: 40A/m

• External Electrical Field: 1V/m

• Single Measurement Time: 0.5 second

• Resistance Measurement Frequency: 1KHz

• Measured Current Frequency: 50/60Hz Automatic

• Low Battery Voltage Indicator: When the battery voltage is lower than 5.3V, the low battery voltage symbol is displayed

• Storage Full Indication: Storage data full of 99 sets,flashed display "MEM" symbol

• Over Range Indication: Exceed range indication “OLΩ”, “L0.01” or “OL A”

• Tester Weight: 1160g

• Tester Dimension: 285mm×85mm×56mm

รับประกันสินค้า 6 เดือน
