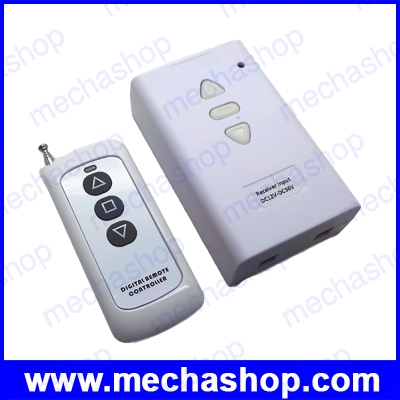

รีโมทควบคุมลิเนียร์มอเตอร์ ดีซีมอเตอร์ กลับทางหมุนได้ DC 12V 24V 36V Motor Remote Control Switch 2CH Motor Up Down Stop Forwards Receiver Wireless Switch

>> เช็คสต๊อคสินค้า <<

Specification

• Working Voltage: DC 12V-36V
  (AC&DC both are ok. Wide working voltage from 12V to 36V(12V 24V 36V)

• Working Current: 48ma

• Quiescent current:16ma

• Max Load: 10A Relay ( have better load less than 5A (60W)

• Size:100*60*30mm

• Function: Receiver Manual Button Control & Wire External Button (without transmitter)

Wire the Normally Open Limited to the External Button Pin ( U--S--D--GND) make your motor Forwards Reverse Cycle

• Original State OFF, (Suddenly, the electricity was cut off, then comes again, the State still is OFF, you need manual turn it ON)
• Out State: Momentary Toggle Latched Adjusted by the Jumper on the Receiver,
  ( we ship default as Latched, if you need use Momentary to change the Jumper on the Receiver ,Notice, please don’t use Toggle)
• Momentary----------Jumper on “1&2”
• Latched-----------Jumper on “3&4”
• Momentary -------------
      - Press button"Up", the Motor Forward, Release is Stop.
      - Press Button "Down", the Motor Reverse, Release is Stop.
  Latched------------------
      - Press button "Up", the Motor Forward, Press Button "Stop" is stop.
      - Press Button "Up", the Motor Reverse, Press Button"Stop" is stop
• If you don’t need wire the Limited Switch, you need connect the UP Down and COM with a Line, we have connect it before we ship out ,if you need use it take away the line that is ok.
• When the receiver output state is “Latched”, we have set it 0.5s time delay for forwards and reverse, it is the Protection function.

รับประกันสินค้า 1 เดือน
