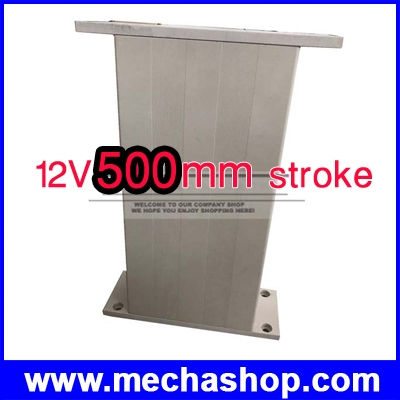

มอเตอร์ยกของ มอเตอร์ยกทีวี มอเตอร์ยกโต๊ะ 12V 500mm stroke สามารถเลือกภาระรับน้ำหนักได้ linear actuator electric linear actuator lift high speed (สินค้า Pre-Order)

>> แจ้งความต้องการสินค้า <<

Product parameters:

• Drive voltage: 12VDC
• Maximum Thrust: 400KG/4000N
• Minimum installation size (fully retracted around in the middle of the distance between the two holes):
•    L1= Stroke+175 mm
• Maximum installation size (fully extended around the middle of the distance of the two holes):
•    L = 2xS(stroke)+175mm
• Ambient temperature :-26  to +65 degree
• Protection class: IP 54
• Built-in limit switches(When completed stroke, linear actuator automatically stops!)
• Low noise design, noise levels below 70 db
• Work rule: 10%. Loading rated thrust need 10% work rule. In 20 minutes, 2minutes work 18minutes rest. If lower load can extend work time.

The linear actuator is auxiliary driving device, widely used in medical, Medical bed, massage chair,   electric foot sofa,  fitness equipment,  care bed, window open, ELECTRIC furniture,household, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, transportation, construction, food and feed processing industry. Widly application in line, massage armchair, automobile, the ventilation window open, military, stage, textile, sewage treatment and other industries equipment

รับประกันสินค้า 3 เดือน
