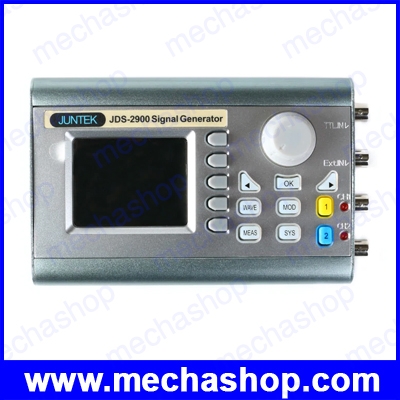

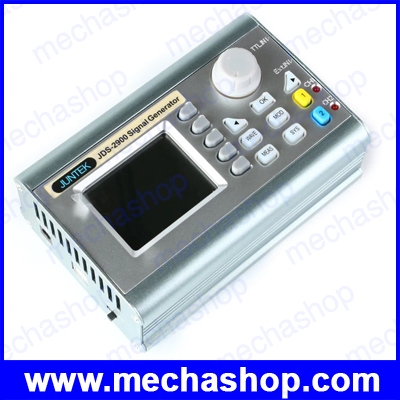

เครื่องกำเนิดสัญญาณความถี่ ฟังก์ชั่นเจนเนอเรเตอร์ เครื่องสร้างความถี่ Cleqee JDS2900 15MHz digital control dual channel DDS function signal generator

>> เช็คสต๊อคสินค้า <<

JDS2900 digital control dual channel DDS function Arbitrary waveform signal generator, with a small size, easy to carry, good stability and other characteristics, the two channels are completely independent, all parameters can be achieved at the same time; can output function signal, pulse signal, Signals, digital signals and custom arbitrary waveform signals, and has a counter and measurement signal function; the use of large-scale FPGA integrated circuits, high-speed MCU microprocessors and high-precision oscillator as the basis of internal circuits, the signal more stable. SMT technology can greatly improve the anti-interference and life of the instrument; electronic engineers, electronic laboratories, research institutes and electronic enthusiasts worthy of the equipment.

Features:

1. Adopt 320*240 2.4" TFT color LCD display, simultaneously display parameters of CH1 and CH2, Ability to reproduce patterns of custom waveform.
2. Using DDS direct digital synthesis technology to generate precise, stable and low distortion output signal.
3. Max. output frequency(sine wave) up to 15MHz/30MHz/40MHz/50MHz/60MHz(optional), 266MSa/s sampling rate and 14bits vertical resolution.
4. Completely independent dual channels output, synchronizing operation and adjustable phase difference.
5. Great improvement for square wave performance, square frequency range up to15MHzwith no distortion.
6. 60 groups of arbitrary wave storage function, memory depth of each group is2048*14bits.
7. High frequency accuracy and resolution: frequency accuracy up to 10^(-6) magnitude, total range frequency resolution is 0.01uHz.
8. High amplitude resolution: the minimum amplitude resolution can reach 1mV, amplitude range is 0Vpp~20Vpp.
9. Duty-cycle of each channel can be adjusted independently0.1%-99.9%, the adjusting resolution is 0.1%.
10. Pulse pulse width and pulse cycle time is precisely adjustable, adjust the range of 30nS-4000S
11. Scanning features: linear sweep and logarithmic sweep functions; 0.1s-999.9s sweep time; sorward, backward and roundtrip sweep directions.
12. With pulse trains burst output function, allow the unit output 1~1048575 arbitrary pulse trains.
13. Measurement functions: can measure signal frequency, cycle, positive/negative pulse width and duty cycle; 1Hz~100MHz frequency range.
14. -9.99V~9.99V DC offset range, offset resolution: 0.01V.
15. With digital signal output function, CMOS output range 0~10V.
16. Storage feature: can store 100 groups of parameters set by the user and extract at any time.
17. Counter function: with DC and AC coupling modes.
18. Arbitrary wave editing function: user can edit arbitrary wave on PC and then download to output from the instrument.
19. Communication function: the PC can be used to control the instrument.
20. With output short-circuit protection: all signal output can work 60s under load short-circuit condition.

Frequency Characteristic:

• Sine frequency range: 0~15MHz

• Square frequency range: 0~15MHz

• Triangle frequency range: 0~15MHz

• Pulse frequency range: 0~6MHz

• TTL digital frequency range: 0~6MHz

• Arbitrary wave frequency range: 0~6MHz

• Square rise time: ≤25nS

• Pulse width adjustment range: 150nS-4000S

• Mininum Frequency resolution: 0.01µHz(0.00000001Hz)

• Frequency accuracy: ±20ppm

• Frequency stability: ±1ppm/3h

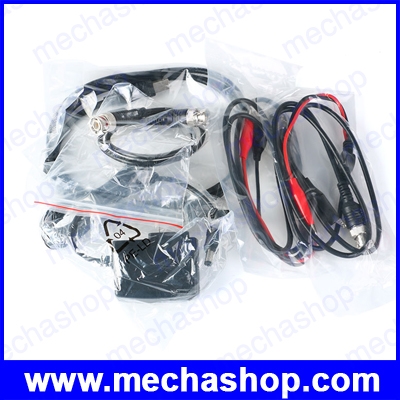

• 1 x signal generator
• 1 x USB communication cable
• 1 x CD
• 1 x Power Adapter
• 2 x BNC Cable Clips
• 1 x Dual BNC straight line

รับประกันสินค้า 3 เดือน
