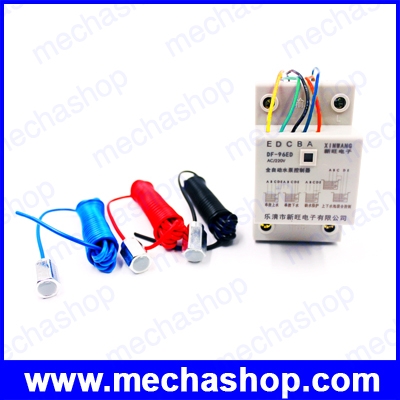

เครื่องควบคุมระดับน้ำอัตโนมัติ ลูกลอยอัตโนมัติ DF96 ED AC 220V 10A Din Rail Mount Float Switch Auto Water Level Controller with 3 probes สายเซนเซอร์ 2m

>> เช็คสต๊อคสินค้า <<

รายละเอียดสินค้า

• รุ่นสินค้า: DF-96ED
• แรงดันไฟฟ้า: AC 220V/50HZ
• กระแสสูงสุด: 10A (ใช้การหน่วงเวลา 30A)
• การติดตั้ง: ติดตั้งบนราง
• การใช้พลังงาน: ≤2W
• การส่งผ่านสัญญาณ : รัศมี 500 เมตร
• ขนาด: 126 * 88 * 51 มม.

แพคเกจ:

• สวิตช์ควบคุมระดับน้ำ 1 ชิ้น
• เซนเซอร์ 200 ซม. 3 ชิ้น

Single-control UP pool (water storage) installation instructions shown in figure 1

• A(red)-Upper water level control point. When water level gets to A point, the probe touch water and controller can stop the pump by auto.
• B(blue)-Lower water level control point. When water level gets off B point, the probe out of reach water and controller can start the pump by auto.
• C(black)-Should be placed in bottom of pool as the common line.
• D(green) and E(yellow)are connected with C (black).

Single-control DOWN pool(drain water)installation instructions shown in figure 2.

• E-Upper water level control point. When water level gets to E point, the probe touch water and controller can start the pump by auto.
• D-Lower water level control point. As liquid level gets off D point, the probe out of reach water and controller can stop the pump by auto.
• C-Should be placed in bottom of pool as the common line.
• A&B-disconnected

Lack of water protection installation instructions shown in figure 3.

• C&D-Lower water level control points. When water level gets off this point,
• C or D probe out of reach water and controller can stop the pump by auto.
• E&C-short-connected;
• A&B-disconnected

Joint control UP and DOWN pool installation instructions shown in figure 4.

• A-Upper water level control point in UP pool. When water level gets to A point,the probe touch water and controller can stop the pump by auto.
• B-Lower water level control point in UP pool. When water level gets off A point, the probe out of reach water and controller can start the pump by auto.
• C-Should be placed in bottom of UP and DOWN pools as the common line.
• D-Lower water level control point in DOWN pool. When water level gets off D point, the probe out of reach and controller can stop the pump by auto.
• E-Upper water level control point in DOWN pool. When water level gets to E point, the probe reach water and controller can start the pump by auto. Then pool starts to drain water. If not, E point disconnected

Used to solve problem:
1. On power but no work:

• a. Check the red indicator is on or not. If not, make the connection is good enough;

2. When water level is above or below probes but the pump does not start or stop by auto, Please check it like the following.

• a. Whether the probe is placed too high or low so that water level can reach or out of reach it
• b. The connection of upper &lower line or probe is dislocation by error or short connected
• c. To check the probe whether it is rust or not or the connection is good enough.
• d. C- Check the common line whether it is placed in the lowermost bottom of pool.

Product Description

• Type: DF-96ED Updated version
• Working voltage: AC 220V/50HZ
• Max Current: 10A(Use the 30A Delay)
• Installation: Din Rail Mount
• Power consumption≤2W
• transmission signal: 500M
• Size: 126*88*51mm

Package include:

• 1pcs Automatic Water Level Controller Switch
• 3pcs 200CM Sensor

รับประกันสินค้า 3 เดือน
