เซนเซอร์ก้ามปู Transmissive Optical Switch HY810H HY810 concave groove slot pitch 10mm photoelectric sensors

>> เช็คสต๊อคสินค้า <<

Product features

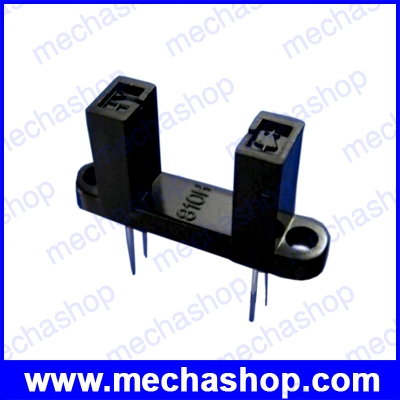

• Product Name: Slotted Optical Switch; Model: HY810H; Output Type: Photo Transistor
• Peak Emission Wavelength: 940nm; IR Diode Forward Current: 50mA; IR Diode Reverse Voltage: 5V
• Transistor Power Dissipation: 75mW; Transistor Collector Current: 20mA
• Photo Transistor Collector-emitter Voltage: 30V; Photo Transistor Emitter-collector Voltage: 5V
• Net Weight: 9g;
• Package Content: 1 x Slotted Optical Switch w Bracket

Product description

• SODIAL(R) 25/64" Slot PCB Photo Interrupter Sensor HY810H 1Pcs
• Features a built-in bracket for easy mounting.
• Consisted of an infrared emitter and a phototransistor, is located face-to-face on the optical axes in a leaded package.
• During operation, output phototransistor switch from ON state to OFF state when object is inserted into gap between emitter and sensor.
• Used for object detection and automatic counting, such as printer, scanner, copy machine, facsimile machine and vending machine, etc.
• Diode Power Dissipation: 100mW
• Operating Temperature Range: -55~100 Celsius Degree
• Number of Pins: 4
• Slot Width: 10mm/25/64"
• Slot Depth: 10mm/25/64"
• Pin Length: 9mm/0.35"
• Pitch: 14mm/0.55", 2.5mm/0.1"
• Hole Dia.: 3mm/0.12"
• Total Size: 27 x 24 x 6mm/1.1" x 1" x 0.2"(L*W*H)
• Material: Plastic, Metal
• Color: Black
