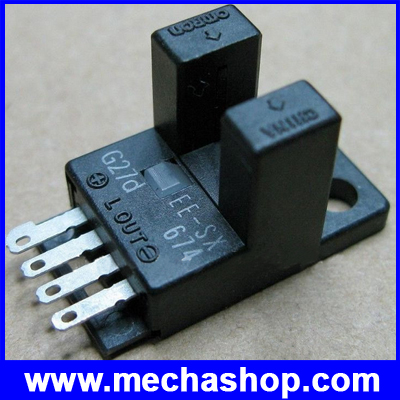

ข้อมูลโฟโต้อิเล็กทริคเซนเซอร์ เซ็นเซอร์ก้ามปู:

• Appearance : Close-mounting
• Luminous method : Non-modulated
• Sensing method : Through-beam type (with slot)
• Sensing distance : 0 to 5 mm (slot width)
• Operation mode Dark-ON/Light-ON(selectable)
• Standard sensing object Opaque : 2 x 0.8 mm min.
• Differential distance elements : 0.025 mm max.
• Light source : GaAs infrared LED with a peak wavelength of 940 nm
• Indicator : Light indicator (red)
• Power supply voltage : 5 to 24 VDC (-10% to 10%) (ripple (p-p): 10% max.)
• Current consumption : Average 35 mA max.
• Control output (Output type) : NPN open collector
• Control output (Load power supply voltage) : 5 to 24 VDC
• Control output (Load current) : 100 mA max.
• Control output (Residual voltage) : 0.8 V max. (at a 100 mA load current)
• 0.4 V max. (at a 40 mA load current)
• Response frequency elements  : 1 kHz min. (average 3 kHz)
• Ambient illumination : 1000 lx max. with fluorescent light on the surface of the receiver

Ambient temperature

• Operating: -25 to 55 CEL
• Storage: -30 to 80 CEL

Ambient humidity

• Operating: 5% to 85%
• Storage: 5% to 95%
  (with no icing or condensation)
• Vibration resistance : 20 to 2,000 Hz(peak acceleration 100 m/s**2), 1.5 mm double amplitude for 2 h (4 min periods)
• each in X, Y, and Z directions
• Shock resistance : Durability:500 m/s2 for 3 times each in X, Y, and Z directions
• Degree of protection : IP50

ไม่มีรับประกันสินค้า
