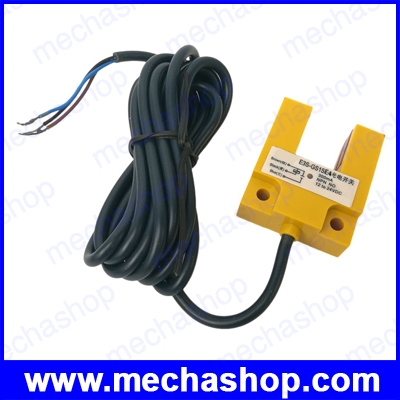

เซนเซอร์ก้ามปู E3S-GS15E4 groove photoelectric switch photoelectric sensor 3 wire NPN-NO 10-30VDC ร่องกว้าง 15mm

>> เช็คสต๊อคสินค้า <<

Specificate:

• Brand: CHIIB
• Model: E3S-GS15E4
• Output: NPN,NO
• Size: 40.5*35.5*15mm
• Work Voltage: 10-30VDC
• Detection Range: Groove type 15cm
• Output Current: 300MA
• Temperature: -20c~55c
• Crust Material: ABS
• Detection distance: 15mm
• Set distance: Opaque Object
• Standard detection object: sensitivity adjuster
• Response time: 1ms
• Connection delay: 1.5ms
• Light Source: Infrared light 660nm
• Supply voltage
     - DC type: DC12-24V(6-36V) Impulse(p-p) 10% below
     - AC type: AC110-220V (36-250V) 50/60Hz
• Consumption current: N.P type:20mA below, A type:1.7mA below
• Control output: N.P type:300mA below A type:400mA below J type: A below contact service life: 0.1 million times
• Loop protection:
     - N.P.D type: reversal connection protection, surge absorption, load short-circuit protection
     - A type: surge absorption
• Ambient temperature humidity
     - During operation,storage: individually-30~+65(No freeze,no drew),
     - During operation,storage: Individually35~95%RH
• Insulation resistance: 50 MΩ about(DC500 megameter) between charging and housing
• Withstand voltage: AC1000V50/60Hz 1 min between charging and housing
• Temperature influence
     - Temperature range-30~+65,at+23,+/-15% detection distance
     - Temperature range-25~+60,at+23,+/-10% detection distance
• Voltage influence
     - Inside+/-15%rated supply voltage range, at rated supply voltage value;
     - Inside +/-10% detection distance
• Protection sturcture: IP65 ICE specification
• materia: Nickel plated brass(ABS); Detection surface(lens)PMMA

รับประกันสินค้า 3 เดือน
