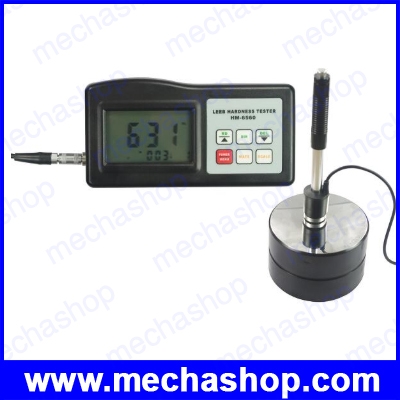

เครื่องวัดความแข็งโลหะ Landtek HM6560 Leeb Hardness Tester HM-6560 Data Memory (สินค้า Pre-Order)

>> แจ้งความต้องการสินค้า <<

Applicable to Die cavity of molds, Inspection of bearing and other mass produced parts on a production line, Failure analysis of pressure vessel, steam generator and other equipment, Inspection of installed machinery, permanent parts of assembled systems and heavy work pieces, Testing surface of a small hollow space, Material identification in the warehouse of metallic materials, Rapid testing in large range and multi-measuring areas for large-scale work piece.

Features:

• Palm size for narrow space.
• Test at any angle, even upside down.
• Direct display of hardness scales HRB, HRC, HV, HB, HS,HL.
• Large memory could store 50 groups including single measured value, impact direction, material and hardness scale etc.
• User recalibration function allowed.
• Can communicate with PC computer for statistics and printing by the optional cable.
• Manual or automatic shut down.
• Low battery indication.

Specification:

• Display: 12.5 mm LCD
• Materials: 9 different common materials
• Measuring range: 200 ~ 900 HLD
• Accuracy: Display error ± 0.8 %
• Repeatability: ± 0.8 %
• Conversion: HL-HRC-HRB-HB-HV-HSD
• Memory: 50 data can be stored and re-readable
• Impact device: D Will handle, Weight: 75g
• Storage temperature: -30 ~ +60
• Working Conditions: Temperature: -10 ~ +50 Humidity: ≤ 90 %
• Power supply: 4 x 1.5 V AAA size (UM-4) battery
• Dimension: 120 × 62 × 30 mm
• Weight: 164 g (not including batteries)

Standard Accessories:

• Main Unit
• Standard Test Block
• Measurement Sensor
• Carrying Case
• Operation Manual
• Small Support Ring
• Cleaning brush

Optional Accessories:

• Impact Body
• Support Rings set
• USB, RS-232C data cable with software
• Bluetooth data out put with software
