Fan Feature:

• Advanced balancing openclose mechanism can ensure shutter 100% open and shut down
• Mainly used for greenhouse, industrial workshop, livestock housing
• Low noise and high air flow capability
• Blades can clean themselves automatically when they are running
• High efficiency motor with stable performance

Specifications:

• Voltage: 220V, 380V
• Model Number: HS-1380
• Blade Diameter: 1250mm
• Blade Velocity: 450r/min
• Certification: CCC, CE, CSA, GS, ROHS, UL
• Mounting: Wall Fan
• Air Volume: 45000m³/h
• Blade Material: Stainless Steel
• Speed: 1400rpm
• Size: 1380*1380*400mm
• Noise: ≤68dB
• Fan Power: 1.1kw

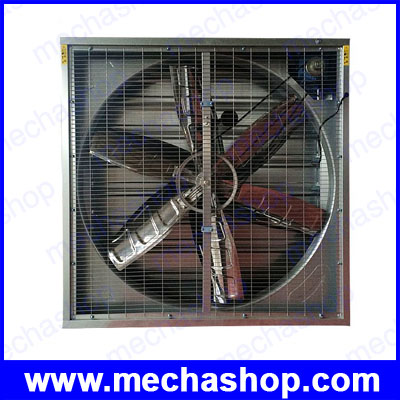

Swing drop hammer exhaust fan adopt advanced automatic manufacturing process, ensure the high accuracy

while producing frames. And it's made of thick galvanized sheet, which has high resistance to corrosion.
The blade was shaped by new-tech distortion pressing with high strength aluminum press casting hub,
which ensure it has the reasonable angle to Maximun the air flow. Along with the high-precisive micro-comput-ering manufacture-aiding system, the faction of the fan will be optimized 5 strict quality detection program: noise detection, vibration detection, trans-mission concentric function detection, balde velocity detection,whole machine effect detection,whole machine effects detection; 380V dedicated motor with three proofing and high performance. Adopting iron cone, ABS engineering plastic cone, all with easily dissembled safety net, which are optimal designed by CAD.

Detailed Images
