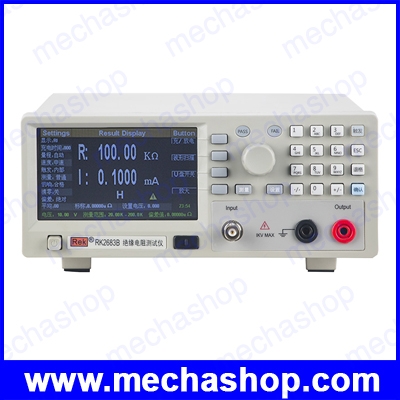

เครื่องวัดฉนวน เครื่องวัดค่าฉนวน REK RK2683B 10K ohm to 5T ohms ,0.1-500V Intelligent Digital Insulation Resistance Tester (สินค้า Pre-Order)

>> แจ้งความต้องการสินค้า <<

.

RK268 series of insulation resistance testing instrument is a measure of home appliances, lighting appliances, electric heaters, electronic components, materials and the insulation performance. Fast test speed, good stability, convenient operation, and has poor discriminant function.

รายละเอียดสินค้า

• Model: RK2683B
• Test range: 10K ohm to 5T ohm
• Test accuracy: R
• Test voltage:
      - 0.1-500V
      - < 0.01="" 10v="" step="" adjustable="" 0.01="" 10v="" step="">
      - > 10V 0.1 step adjustable
• Voltage accuracy: 0.25% 0.2V (10V
• control mode: ARM microprocessor with analog circuit
• Display mode: 4.3 TFT color LCD screen
• Range mode: Manual / automatic
• Measuring speed: Fast: 30 second Slow: 8 / sec second Per second
• Sorting: Block three qualified, unqualified two files, you can choose single point sorting and sorting interval
• trigger: Internal trigger, manual trigger and external trigger, foot switch trigger
• Scanning waveform: R-V, R-I graphics scanning test function
• Surface resistance,resistivity: Optional ring electrode can test material surface resistance, resistivity
• storage: The internal and external instruments USB drive
• standard interface: RS-232C interface Handler interface USB HOST (PLC), USB DEVICE
• work environment: Ten Less than or equal to 40 DEG C Ninety %RH
• Power requirements: 220V + 10%, 50Hz + 5%
• Power waste: 4 0VA
• Size: 330 x 220 x 198 Mm
• parts: Power cord , Test line RS232, HANDLER, USB communication line, junction box, foot switch

รับประกันสินค้า 6 เดือน
