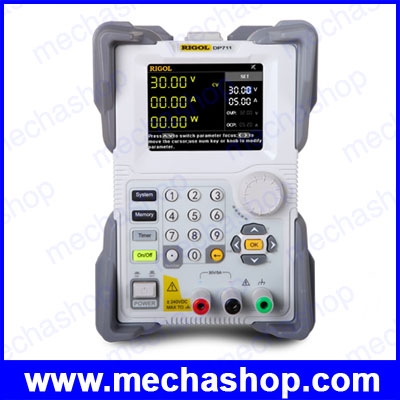

เพาเวอร์ซัพพลายปรับค่าได้ แหล่งจ่ายไฟแบบแม่นยำ Rigol DP711 Single output 30V/5A total power up to 150 W power supply (สินค้า Pre-Order)

>> แจ้งความต้องการสินค้า <<

RIGOL's DP700 series power supply is an affordable programmable linear DC power supply for benchtop applications. With quality performance specifications, reliable output, and a small footprint, the DP700 series provides incredible benchtop value. The DP700s also support options including timing output, trigger function, and high resolution.

Features:

• Single output, 30 V/5 A , total power up to 150 W

• Low ripple and noise: <500 μVrms/3 mVpp; <2 mArms

• Excellent load and line regulation rate: <0.01% + 2 mV; <0.01% + 2 mA

• Transient response time: <50 μs 1 mV/1 mA resolution (optional)

• External trigger function supported, enabling synchronous output for multiple devices (optional)

• Timing option supports sweeps with minimum 10 ms dwell time

• 3.5-inch TFT-LCD

Specifications:

Product Features:

• Low Ripple and Noise: < 500uVrms/3mVpp

With extremely low noise, the product can satisfy your demands for highly pure power.

• Transient Response Time: <50us

The transient response time is less than 50 μs. When the transient change occurs to the load current, the output voltage can be quickly restored to the set value, ensuring the output quality.

• Excellent Line Regulation Rate and Load Regulation Rate: 0.01%

When the timing output is enabled, the system will configure the voltage, current, and the duration time based on the preset timer parameters, so as to provide varied voltage and/or current output for the load

• Overvoltage/Overcurrent (OVP/OCP)

You can set thresholds for OVP and OCP values. If overvoltage or overcurrent occurs, the power supply shuts down the output automatically, and then a prompt message is displayed.

• Convenient Trigger Function

When multiple power supplies are in serial or parallel connection, enabling the external trigger function can realize the synchronous output for multiple power supplies.

• Clear and Intuitive User Interface, Easy to Operate

You can clearly view the status of the instrument from its intuitive user interface. The help information is displayed in real time at the bottom of the interface, convenient for you to operate.

รับประกันสินค้า 1 ปี
