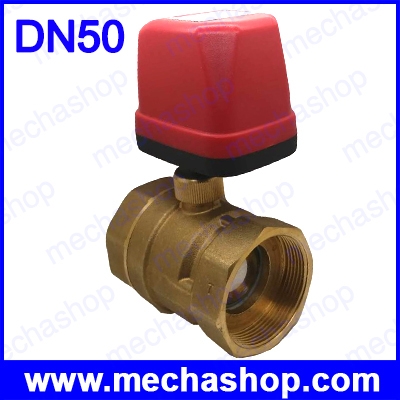

มอเตอร์วาล์วไฟฟ้า ทองเหลือง DN50 2 inch CWX-50p 3.5nm quick operation brass electric water flow control ball valve for water system CR02 220V

>> เช็คสต๊อคสินค้า <<

Features:

• Metal gearbox and POM gear design, low noise, perform reliably .
• Long service life: more than 100000 circles.
• Electric limit and machinery limit design, located accurately, avoid gear run continuously.
• Mufti-angle assembling, easy to install.
• Float ball structure, no leakage,especially suitable for heavy pollution conditions.

Technical Parameters:

• Voltage: AC220V
• Pipe Size: DN50 2"
• Control mode: CR02
• Nominal pressure: 1.6Mpa
• Power: ≤4W
• Output torque: 3.5NM
• Connection end: Pipe thread G
• Power consumption: 6VA
• Action time: <15S
• Close differential pressure: <0.4Mpa
• Medium temperature: 2-90
• Wire length: 30cm

Application:

• Heat energy meters, fire work, save water system.
• Auto control system, industrial mini auto control equipment.
• Water saving equipment, drinking water equipment.
• Air-conditioning fan coin(HVAC).

รับประกันสินค้า 6 เดือน
