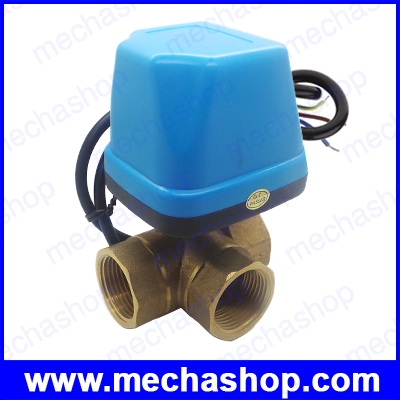

มอเตอร์วาล์วไฟฟ้าสามทาง Electric Motorized Brass Ball Valve DN25 AC 220V 3 Way 3-Wire ระบบน้ำร้อนน้ำเย็น

>> เช็คสต๊อคสินค้า <<

Features:

• Straight flow, large flow, no blocking by the slag
• Good waterproof and dirt-proof function (IP65)
• Actuator is easily disassembled and assembled.
• Actuator can be installed after the equipment and pipes are installed, so as to improve efficiency.
• LED indicates when switch on/off the valve, to detect whether the valve is wholly on/off.
• Highly energy saving, long life design.
• closed tightly due to high pressure when closing
• Actuator can be assembled in two directions

Specifications:

• Medium: Cold/hot water, 60% Ethylene Glycol

• Material: Brass

• Power Supply: AC 220V

• Model: DN25(G 1")

• Structure Forms: Three Ways

• Operation Mode: Three Floating Point (24V AC) or ON/OFF

• Power: 6W (Only when the valves open and close)

• Running Time: 5-15 Seconds

• Nominal Pressure: 1.6MPa

• Medium Temperature: 2°~95°

• Maximum Differential Pressure: 1.0MPa

• Protection Class: IP65

• Connection Mode: ZG Internal Thread

Note:

• Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid

• Due to the difference between different monitors, the picture may not reflect the actual color of the item

Package Contents:

• 1 x Ball Valve
• 1 x User Manual

รับประกันสินค้า 6 เดือน
