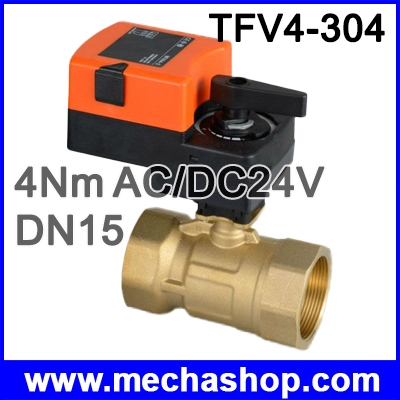

มอเตอร์วาล์วไฟฟ้า ปรับวาล์วระบบอัตโนมัติ TFV4-304 4Nm DN15 1/2'' Modulating valve, AC/DC24V Input control signal 0-10V (สินค้า Pre-Order)

มอเตอร์วาล์วไฟฟ้า ปรับวาล์วระบบอัตโนมัติ TFV4-304 4Nm DN15 1/2'' Modulating valve, AC/DC24V Input control signal 0-10V (สินค้า Pre-Order)

>> แจ้งความต้องการสินค้า <<

TF proportional valve consists of TFV4- series rotary actuator and DN15-DN50 brass ball valve. Equal percentage flow characteristic guarantees the valve performances of stability. Control ball valves are widely used in HVAC system, heating system, water treatment equipment, and water running control in industrial automation, such as: AHU, flesh air-handling unit, differential pressure control unit and heat ex-changer for flow regulation and on/off control.

 Application

• HVAC system
• Heating system
• Water treatment system
• Industrial equipments

Operational mode

• TF proportional valve is motor-operated by a type of, TFV4-304, TFV4-306 and TFV-310 actuator. The actuator is controlled by a modulating on/off, or proportional control system and move the ball of the valve, to the opening position dictated by the control signal.

Technical data

Valve body:

• Medium: cold/hot water, with 50% glycol
• Temperature of medium: 2°C...90°C
• Rated pressure: PN20
• Pipe connector: internal thread
• Ambient temp. range: −5…+60°C; 0…90%RH    Size: 3/4’’ - 2’’
• Valve type: 2-way and 3-way
• Flow characteristic: equal percentage, on/off

Material:

• Valve body: forged brass, Hpb59-1
• Seal: ball: EPDM+PTFE
• Ball: brass
• stem: EPDM
• Valveconnector: PC
• Valve Spindlealuminum alloy

Actuator:

• TFV4-304   24VAC/DC±15%, proportional (0(2)-10VDC)
• TFV4-306   24VAC/DC±15%, proportional (0(2)-10VDC/0(4)-20Ma)
• TFV4-310   24VAC/DC±15%, proportional (0(2)-10VDC/0(4)-20Ma)

• Output torque: 4N.m, 6N.m and 10N.m      Angle of rotation: 90°
• Manual handle   Automatic overload protection system
• Manual selection of ball rotation direction: C.W. /C.C.W, factory setting is C.W.
• Protect rank: IP54  Operation time: 50S-120S

Function (on/off and proportional type)

• The actuator is controlled by a modulating on/off, and proportional control signal, using high transmitting ratio gear drive to fix and lock.

Wiring Connection:

Installation:

Dimension and Wiring:

รับประกันสินค้า 3 เดือน
