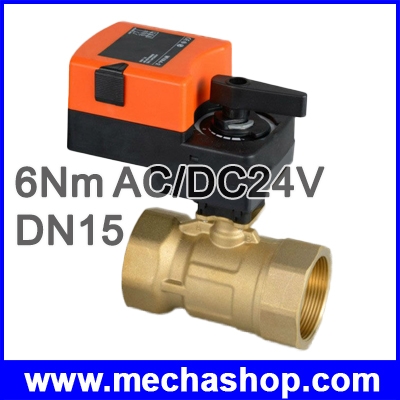

มอเตอร์วาล์วไฟฟ้า ปรับวาล์วด้วยระบบอัตโนมัติ Modulating proportion valve 6Nm, AC/DC24V ใช้ได้ทั้ง 4-20mA/0-10V ทองเหลือง 1/2'' DN15 (สินค้า Pre-Order)

มอเตอร์วาล์วไฟฟ้า ปรับวาล์วด้วยระบบอัตโนมัติ Modulating proportion valve 6Nm, AC/DC24V ใช้ได้ทั้ง 4-20mA/0-10V ทองเหลือง 1/2'' DN15 (สินค้า Pre-Order)

Equal percentage flow characteristic guarantees the valve performances of stability. Control ball valves are widely used in HVAC system, heating system, water treatment equipment, and water running control in industrial automation, such as: AHU, flesh air-handling unit, differential pressure control unit and heat exchanger for flow regulation and on/off control.

Application

• HVAC system
• Heating system
• Water treatment system
• Industrial equipments

Operational mode

• The actuator is controlled by a modulating on/off , proportional control system and move the ball of the valve, to the opening position dictated by the control signal.

Technical data

Valve body:

• Medium: cold/hot water, with 50% glycol
• Temperature of medium: 2-90 degree C
• Rated pressure: PN20
• Pipe connector: internal thread
• Ambient temp. range:5 to+60 degree C0-90%RH Size: 1/2''
• Valve type: 2-way
• Flow characteristic: equal percentage,on/off

Material:

• Valve body: forged brass, Hpb59-1
• Seal: ball: EPDM+PTFE
• Ball: brass
• stem: EPDM
• Valveconnector: PC
• Valve Spindlealuminum alloy

• 24VAC/DC+/-15%, proportional (0-10VDC/4-20ma)
• Output torque:  6N.m Angle of rotation:90 degree
• Manual handle Automaticoverload protectionsystem
• Manual selection of ballrotation direction: C.W. /C.C.W, factory setting is C.W.
• Protect rank: IP54 Operation time: 62S

Wiring Connection:

• 24VAC/DC+/-15%, proportional (0-10VDC/4-20ma)
• Black wire and brown wire are the power wire.
• Yellow wire accept 0-10V control signal to control the valves open angle.

Installation:

Dimension and Wiring:

รับประกันสินค้า 3 เดือน
