ชุดปรับมุมเอียงตามแสงอาทิตย์ Solar Tracking system 1000W Solar Tracker 1แกน Linear Actuator 12V 200mm.+Electronic Controller +Wind Speed Sensor (สินค้า Pre-Order)

ชุดปรับมุมเอียงตามแสงอาทิตย์ Solar Tracking system 1000W Solar Tracker 1แกน Linear Actuator 12V 200mm.+Electronic Controller +Wind Speed Sensor (สินค้า Pre-Order)
ชุดปรับมุมเอียงตามแสงอาทิตย์ Solar Tracking system 1000W Solar Tracker 1แกน Linear Actuator 12V 200mm.+Electronic Controller +Wind Speed Sensor (สินค้า Pre-Order)ชุดปรับมุมเอียงตามแสงอาทิตย์ Solar Tracking system 1000W Solar Tracker 1แกน Linear Actuator 12V 200mm.+Electronic Controller +Wind Speed Sensor (สินค้า Pre-Order)ชุดปรับมุมเอียงตามแสงอาทิตย์ Solar Tracking system 1000W Solar Tracker 1แกน Linear Actuator 12V 200mm.+Electronic Controller +Wind Speed Sensor (สินค้า Pre-Order)ชุดปรับมุมเอียงตามแสงอาทิตย์ Solar Tracking system 1000W Solar Tracker 1แกน Linear Actuator 12V 200mm.+Electronic Controller +Wind Speed Sensor (สินค้า Pre-Order)ชุดปรับมุมเอียงตามแสงอาทิตย์ Solar Tracking system 1000W Solar Tracker 1แกน Linear Actuator 12V 200mm.+Electronic Controller +Wind Speed Sensor (สินค้า Pre-Order)ชุดปรับมุมเอียงตามแสงอาทิตย์ Solar Tracking system 1000W Solar Tracker 1แกน Linear Actuator 12V 200mm.+Electronic Controller +Wind Speed Sensor (สินค้า Pre-Order)
รหัสสินค้า STS001
หมวดหมู่ Solar Tracking
ราคา 6,900.00 บาท
สถานะสินค้า Pre-Order
จำนวน
ชุด
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
ชุดปรับมุมเอียงตามแสงอาทิตย์ Solar Tracking system 1000W Solar Tracker 1แกน Linear Actuator 12V 200mm.+Electronic Controller +Wind Speed Sensor (สินค้า Pre-Order)

ชุดปรับมุมเอียงตามแสงอาทิตย์ Solar Tracking system 1000W Solar Tracker 1แกน Linear Actuator 12V 200mm.+Electronic Controller +Wind Speed Sensor (สินค้า Pre-Order)

>> แจ้งความต้องการสินค้า <<



Here for sale is Complete Single Axis Solar Tracker Kits, items Include a 200mm/ 8" Stroke Linear Actuators &2PCS Mounting Brackets and the Electronic Controller And the Wind Speed Sensor you need for a single axis solar tracker. Build your own frame and you will get a professional grade single axis solar tracker!

Solar tracking ระบบติดตามแสงอาทิตย์

About the East-West Linear Actuator With Mounting Brackets

For the Linear Actuator, we have  200mm/250mm/300mm/350mm/400mm/450mm Stroke Length  for Option,
Here for sale is 200mm stroke,


Specification:



About the Solar Tracking Controller

Here for sale is WST03-5 Single Axis Solar Tracker Controller, the main function is to control the single axis (oblique single axis)
system to track the sunlight. Items include the controller box, light sensor&2meters wire and IR (infrared) remote controller.



One of the advantage is that the light sensor is inside the waterproof shell which can extend the light sensor's lifespan. Another advantage is there is a sun-visor which can enlarge the detection angle range and thus increase the tracking accuracy.


Features:
  • Tracking accuracy is high, average tracking accuracy is ≤1°(The actual accuracy is relevant with the system’s moving speed);
  • The light-sensor is inside the waterproof shell, which is waterproof, dustproof and resistant to ageing;
  • The interval time of continuous tracking is adjustable;
  • The threshold value of the light-sensor is adjustable;
  • The threshold value of the wind speed sensor is adjustable;
  • With working status indicator light, can indicate multiple working status: East-West orientation working status, manual status,
  • wind speed action status, sunny status, cloudy status, execute to scheduled homing status in cloudy day, self-lock status at night;
  • Can execute to scheduled homing position in cloudy day or at night;
  • With IR remote control to manually control the East-West orientation;
  • Users can add external limit switch as needed;
  • Users can add wind speed sensor as needed;
  • Can move to scheduled position when there is wind (Needs to add wind speed sensor);
  • East-West orientation limiting (Needs to add limit switch);
  • Wrong battery pole connection protection, with over-current protection fuse;
  • Low standby power, standby current is <10mA.

About the Wind Speed Sensor


This is 12V/24V Wind Speed Sensor with Voltage Signal Output , it comes with 4PCS Blades and 2 Meters Cable,
 This set wind speed sensor is in small size, convenient to carry and easy for installation.

Product Highlights:
  • Easy-installation.
  • Single axis tracker provides up to 35% more power production
  • Engineered to hold up to 1000 Watts of solar panels
  • Waterproof with IP65
  • Small self –consumption.

Caution:

Never approach a solar tracker while the Solar Tracker electronics are “on”.
The solar tracker can move unexpectedly and the powerful linear actuator/motor can cause serious injury or death.

Always disconnect the Solar Tracker electronics from its power supply before approaching the solar tracker.


Single Axis Solar Tracking System Diagram:


Application:

Solar tracking system: Solar photovoltaic System, solar thermal system,etc.

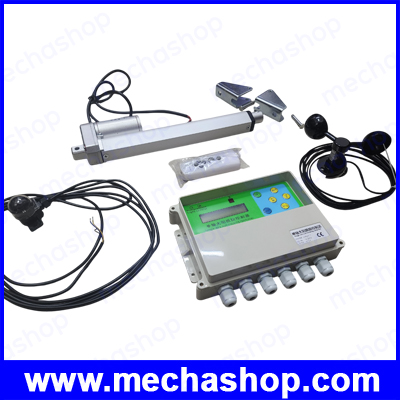

Package Including:
  • 1x 200mm 8" Stroke DC 12V 5.7mm/s Speed Linear Actuator.
  • 1x Solar Tracking Controller+Light Sensor+IR Remote.
  • 1x Wind Speed Sensor +2Meters Cable.
  • 2x Silver Mounting Brackets for the linear actuator.

รับประกันสินค้า 3 เดือน
