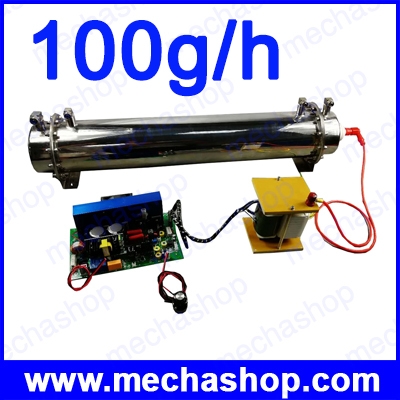

เครื่องผลิตโอโซน เครื่องสร้างโอนโซน 100g/h Silica Tube Ozone Generator Generador de ozono Water Cooled (สินค้า Pre-Order)

>> แจ้งความต้องการสินค้า <<

.

Specification:

• Name100g/H Ozone GeneratorHigh Voltage Power Pack+Transformer+honeycomb duct Tube
• ModelTS-100GC
• VoltageAC220V/50HZ, AC110V/60HZ
• Power Consumption25800W Adjustable
• Feeding sourcesDry and clean oxygen or airPressure0.15Mpa
• Cooling Water: Water flow should be more than 10L/minwater temperature recommendation less than 25degreePressure less than 0.8Mpa
  (Attention the difference between cooling water temperature and working environment temperature should be within 8degree. for instance, when it is 25degree in the room, the cooling water should be between 17-33degree, so as to avoid condensate which will damage the tube. )
• Ozone Output
   - When oxygen inputoxygen flow 2530L/minozone output≥100g/h
   - When cold and dry air inputair flow180~220L/minozone output≥50g/H
• Ozone Density
   - 105mg/Lwhen oxygen flow5L/min)
   - 60mg/L (when oxygen flow 25~30L/min)
• Working temperature-1040
• Ideal working temperature-1025
• Working Humidity≤85%RHno condensate in the smoothly surface
• Dimension
   - Tube: 850*170*180mm
   - Power pack: 230*137*85mm
   - Transforme: 125*114*90MM
• Net Weight11.22KG Tube7.7KGhigh voltage power pack:1.1KGtransformer2.42KG

When install up to 3pcs 100g in one machine, the total is 300g.

Feature:

• Ozone tube featurethere are many discharging tubes inside the ozone tubeboth the internal and external discharging tubes are made of 316 stainless steel, the ozone tube shelter is made of 304stainless steel. The dielectric materials are made of 99.8% high pure silica tube, and sealed by PDFE and Fluorine glue. External electrode is water cooled, designed life span is 50000hrs.

• Transformer and featureMilitary grade variable frequency transformer PCB and vacuum epoxy transformermain featureIGBT pushBandwidth Auto / ManualBoot slow start,Limit inrush current Power supply over-voltage protection. Power converter overheating protection, output short circuit, open circuit protection, sound and light warning. Circuit anti-interference, moisture, corrosion designand can be customized to be controlled by PLC0~5V or 4~20mAthe normal life span is 12000hrs.

• Instruction on components on the PCB
  - A/Potentiometerthe main function is to adjust the power consumptionso as to adjust ozone concentration and outputrotate it clock-wisely to increaserotate it anti-clock-wisely to decrease if is controlled by PLC0~5Vthe potentiometer should be removed
  - B/High voltage cable and high voltage earth cablethe red high voltage cable starts from the black transformer with diameter 6mmit should be connected to the terminal of the ozone tube, . the yellow-green high voltage earth cable starts from the black transformer, too. It should be connected to the shelter of the ozone tube. Please refer to the picture in page 1.

• The power supply is driven by positive and negative pressure, slow start no surge current, When adjust the potentiometer, it does not change the frequency.

Dimension:

100G ozone generator tube:

100g ozone generator transformer:

100g ozone generatror power pack:

Application:

• Industrial water treatment, agricultural watering, chemistry deodorization, etc.

รับประกันสินค้า 3 เดือน
