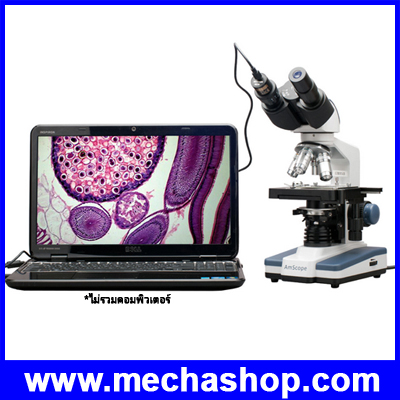

กล้องจุลทรรศน์ พร้อมอุปกรณ์ 40X-2500X LED Digital Binocular Compound Microscope with 3D Stage + USB Camera (สินค้า Pre-Order)

กล้องจุลทรรศน์ พร้อมอุปกรณ์ 40X-2500X LED Digital Binocular Compound Microscope with 3D Stage + USB Camera (สินค้า Pre-Order)

>> แจ้งความต้องการสินค้า <<

หมายเหตุ สินค้า Pre Order ***กรณีสินค้ามีการอัพเกรดเทคโนโลยีให้ทันสมัยขึ้น ซึ่งบางครั้งอาจเกิดขึ้นได้ โดยที่อาจมีการเพิ่มฟังก์ชั่นมากขึ้นแต่ยังคงฟังก์ชั่นพื้นฐานเดิมไว้ ลูกค้าโปรดยอมรับการเปลี่ยนแปลงที่เกิดขึ้น

Features:

• 30 degree inclined 360 degree swiveling Siedentopf binocular head

• High quality precise optical glass elements

• Five magnification settings, 40X, 100X, 250X, 400X, 1000X & 2500X

• Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)

• Two pairs of widefield eyepieces: WF10X and WF25X

• Adjustable interpupillary distance

• Adjustable ocular diopter

• Variable intensity illumination

• Coaxial coarse and fine focus adjustment

• Focusing knobs are on both sides of the microscope

• Stage upward moving lock protects objectives and slides

• Stain-resistant double layer mechanical stage

• NA1.25 Abbe Condenser with iris diaphragm & filters

• Rack and pinion adjustment condenser

• Manufactured under ISO 9001 Quality Control Standard

• From USA

Microscope Specifications:

• Brand Name: AmScope

• Model No: B120C-E

• Eyepieces: widefield, WF10X and WF25X

• Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)

• Head: 30 degree inclined 360 degree swiveling binocular

• Interpupillary distance: 2-1/8" - 3-1/8" (53mm - 77mm)

• Adjustable ocular diopter

• Nosepiece: revolving quadruple

• Mechanical Stage: 3-D double layer

• Size: 4-5/8" x 5" (118mm x 127mm)

• Travel Range (X-Y): 2-13/16" x 1-3/16" (70mm x 30mm)

• Condenser: NA1.25 Abbe condenser with iris diaphragm

• Illumination: LED light, transmitted, intensity adjustable, GS and CE approved

• Focusing: coaxial coarse & fine knobs on both sides

• Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included

• Dimension: 11" x 7" x 13-3/4" (280mm x 178mm x 350mm0


Camera Specifications:

• Resolution: 640x480 (approx. 350,000 pixels)

• Sensor Size: 1/4“ (3.58mm(H) x 2.69mm(V))

• Pixel Size: 5.6µm x 5.6µm

• G Sensitivity: 1.9v / lux-sec (550nm)

• Frame Rate: 30fps @640x480, 80fps @320x240

• Operating System: Windows XP/Vista/7/8 (32 & 64 bit), Mac OS X, Linux

• PC Requirements: CPU equals to Intel Core2 2.8GHz or higher, USB2.0 port

• Advanced software for Windows:
  - offers stitching, EDF, video recording and measurement functions
  - conducts measurements for lengths, angles, arcs, areas and etc.
  - saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
  - edit and process microscopy images in a manner similar to PhotoShop
  - live video and still image capture can be set in different resolutions simultaneously

• Life-time free software upgrades



Packing List

• 1 Siedentopf Binocular Microscope Head

• 1 Microscope Body Frame with Double Layer Mechanical Stage and LED Illumination

• 4 DIN Standard Objectives, 4X, 10X, 40X and 100X

• 1 Pair of Widefield 10X Eyepieces

• 1 Pair of Widefield 25X Eyepieces

• 1 Blue Color Filter

• 1 Dust Cover

• Sample Immersion Oil

• User's Microscope Manual

• 1 USB2.0 Digital Camera 640x480 pixel

• 1 USB Cable

• 1 CD with Software, Driver and User's Instructions
