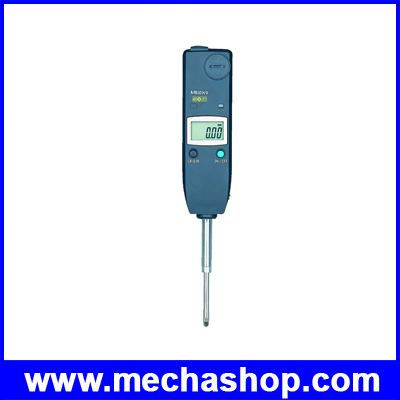

เครื่องมือวัดละเอียด ดิจิตอล อินดิเคเตอร์ ABSOLUTE Digimatic Indicator ID-U SERIES 575 - Slim and Economical Design

>> เช็คสต๊อคสินค้า <<

Feature

• General purpose indicator with the measuring range of 25.4mm/ 1”.
• Cost-effective and user-friendly type which is equipped with the basic functions necessary.
• The ABS (ABSOLUTE) sensor restores the last origin position automatically when the indicator is turned on, and realizes high reliability by eliminating over-speed errors. Regarding origin setting, refer to “Origin Setting of Digimatic Indicators” on page B.284.
• Battery life of 20,000 hours in continuous use has been achieved.
• Easy-to-read large LCD readout with the character height of 8mm.
• Equipped with a data output port that enables incorporation into measurement networking and statistical process control systems.

Specifications

• Order No.(w/lug, flat-back) : 575-121
• Resolution :0.01mm
• Range :25.4mm
• Accuracy* :0.02mm
• Measuring force :

Technical Data

• Accuracy: Refer to the list of specifications (Excluding quantizing error of ± 1 count)
• Resolution: 0.01mm, .0005”/0.01mm
• Display: LCD Character Height 8.5mm
• Scale type: ABSOLUTE electrostatic linear encoder
• Max. response speed: Unlimited (Measurement by scanning can not be performed)
• Measuring force: Refer to the list of specifications
• Stem dia.: 8mm (ISO/JIS type) or 3/8” (ANSI/AGD type)
• Standard contact point: 901312 (ISO/JIS type) 21BZB005 (ANSI/AGD type)
• Battery: SR44 (1 pc.), 938882
• Battery life: Approx. 20,000 hours under normal use
• Dust/Water protection level: IP42
• Lifting lever: 137693

Functions

• Origin-set (Zeroset), Counting direction switching,Power ON/OFF, Data output, inch/mm conversion (inch/mm models)
• Alarm: Low voltage, Counting value composition error

Optional accessories

• Spindle lifting cable (stroke: 10mm): 540774
• Contact points for Mitutoyo’s dial indicators (Refer to pages B.312 to B.315 for details.)
• SPC Cable: 1m (905338) / 2m (905409) Refer to page B.016 for details.
• Connecting Cables for U-WAVE-T: 160mm (02AZD790F) For footswitch (02AZE140F)
• Digimatic Mini-Processor DP-1VR: 264-504
• Measuring Stands
